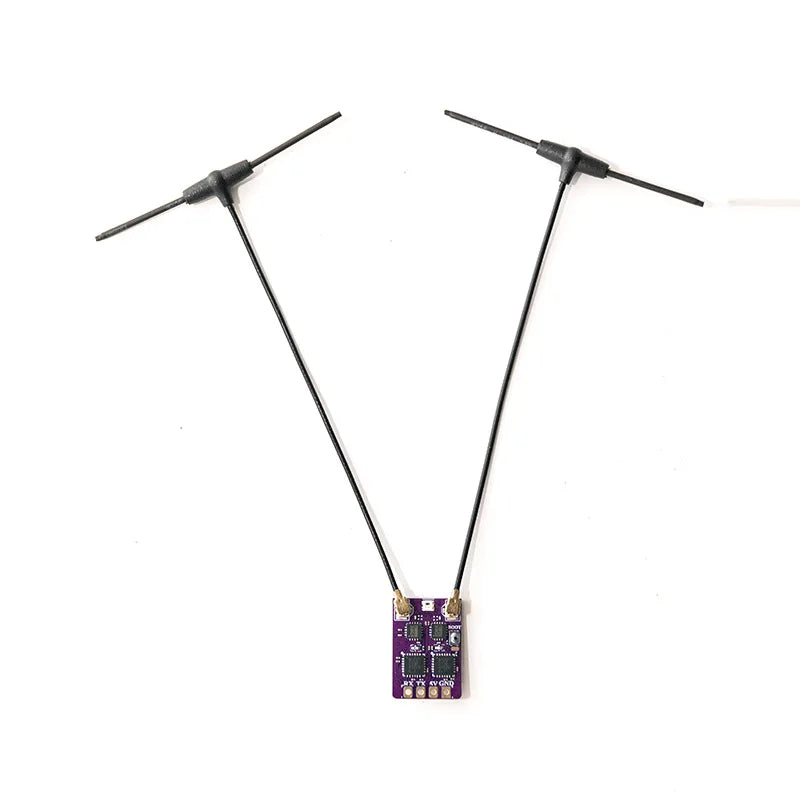

EP1 Dual ELRS 2.4Ghz Gemini Receiver

Based off the Happymodel EP1 Dual RX using the same firmware but made by another company.

ELRS 2.4G Diversity Receiver is a new generation of true dual-antenna diversity receiver system based on the ExpressLRS open source project. ExpressLRS features long range operation, low latency, maximum 1000Hz refresh rate, and low price.

The ELRS 2.4G Diversity Receiver has a reasonable placement of dual antennas for wider signal reception and more stable connection than ordinary single antenna receiver systems. It uses a TCXO temperature compensated crystal oscillator to avoid frequency shifts caused by temperature changes and the telemetry power is up to 100mW.

Specification Parameters

Size: 20mm*14mm

Weight: 1.1g(RX only)

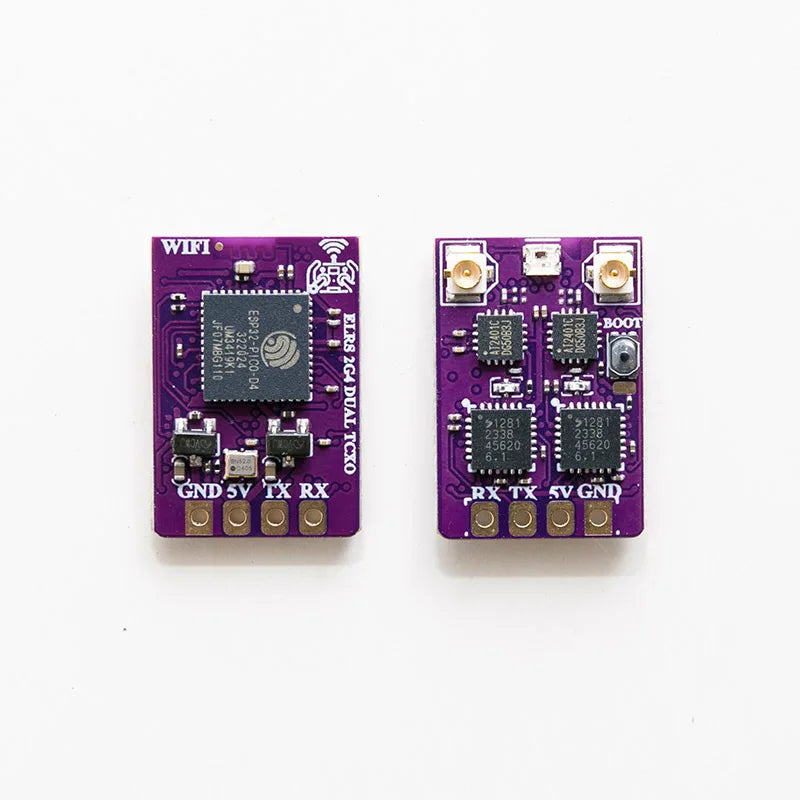

Chips: ESP32-PICO-D4, SX1281

Crystal Oscillator: TCXO

Frequency Band: 2.4GHz ISM

Refresh Rate: 25Hz-1000Hz

Input Voltage: 5V

Antenna Connector: Ipex1

Indicator Light: RGB light

TLM Power: 20

Firmware: HappyModel EP Dual 2.4GHz RX

Feature

1: WIFI Upgrade firmware

2: ELRS open source project, remote control

3: Maximum refresh-rate of 1000Hz

4: Two independent RF receiving links, true diversity receiver

5: The use of temperature-compensated crystal oscillator (TXCO), no fear of high or low temperature impact, more stable     performance, even if long hours of work is not easy to cause loss of control

6: Built-in PA + LNA, up to 100mW telemetry power

Packaging List

1: ELRS 2.4G Diversity Receiver

2: Heat Shrink Tubing

3: 30Awg Silicone Wire (1 Black, 1 Red, 1 White, 1 Yellow)

4: 2.4G Receiving Antenna*2
